LTTX 136334 Flat Car with Log Bunks
| Initial | LTTX | Draft Gear | 15 | |
| Number | 136334 | Inside Length | ||
|
Type |
Flat Car |
Inside Width | 9' 3" | |
|
AAR Car Type Code |
F326 | Inside Height | ||
| Load Limit | 194,600 lbs. | Outside Length | 94' 8" | |
| Max Weight on Rail | 286,000 lbs. | Extreme width | 9' 10" | |
| LT. WT. | 91,400 lbs. | Extreme Height | 14' 6" | |
| Cu. Ft. Capacity |
Height of extreme width |
14' 6" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
89' 4" | |
|
Mechanical Designation |
FMS | NH90T | ||
| Built By |
National Steel Car, Hamilton |
Built | 1999 | |
| Number Built | Re-Built |

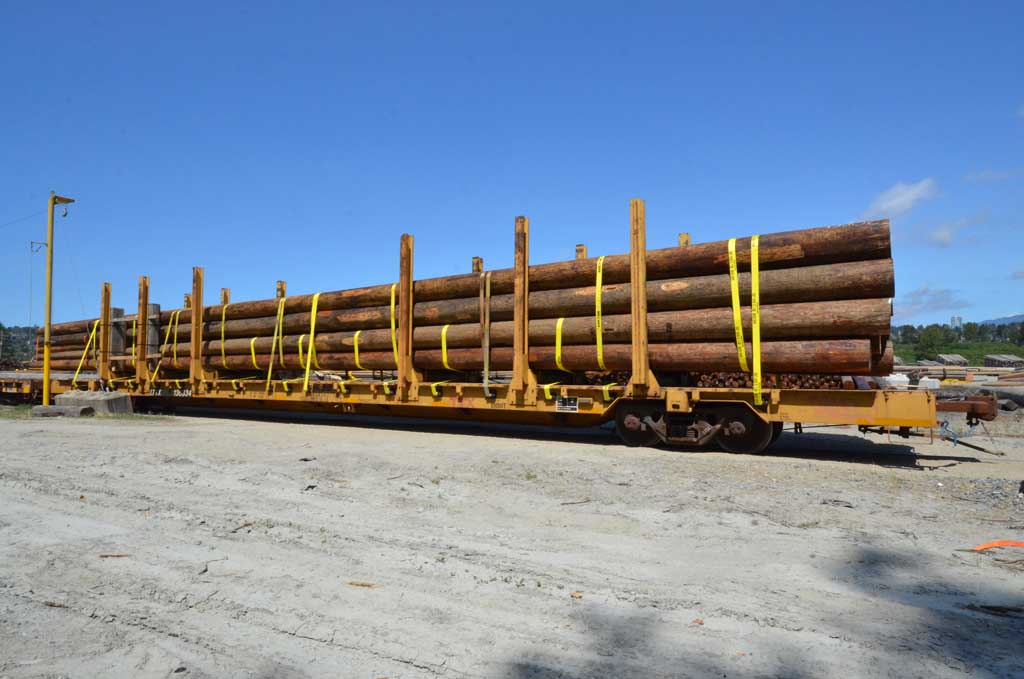

Stella Jones, Coquitlam, BC, 7/30/2016, Photo by Carson Wiebe

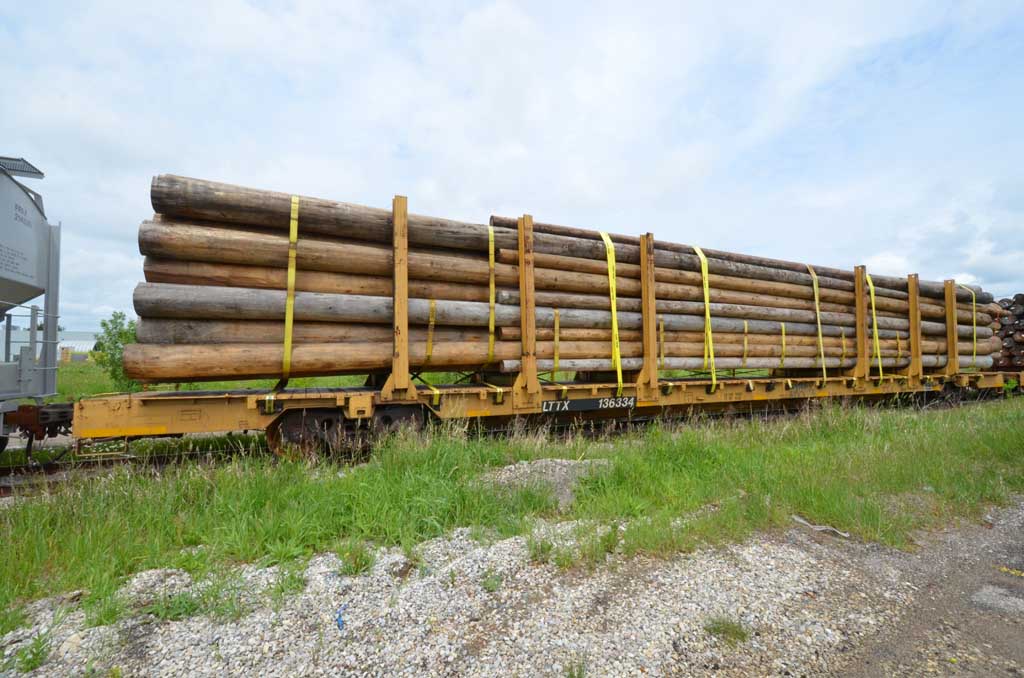

Guelph, Ontario, 6/9/2015, Photo by Carson Wiebe
|
|||
|
|||
|
